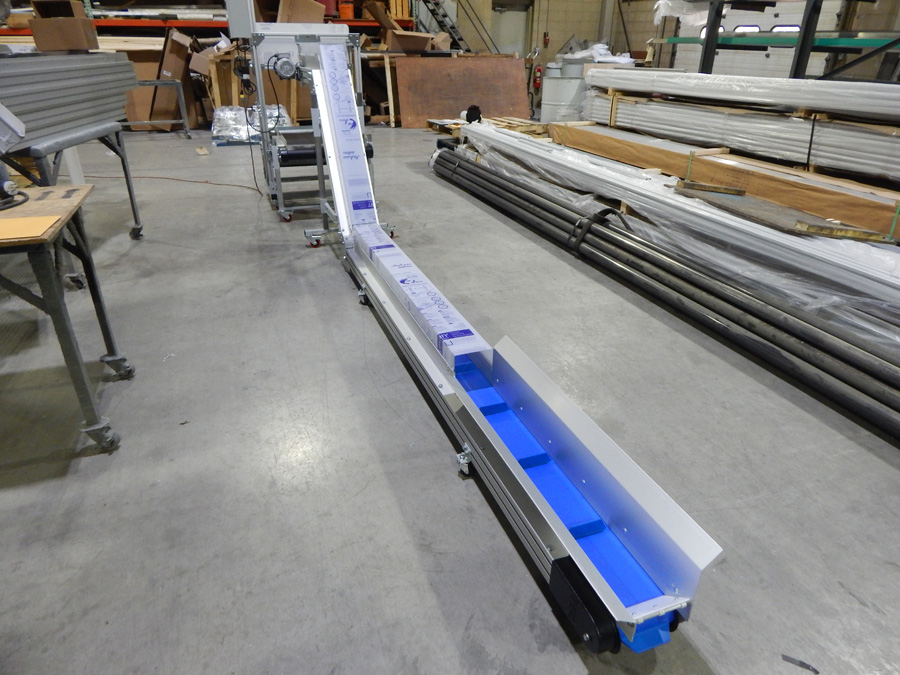

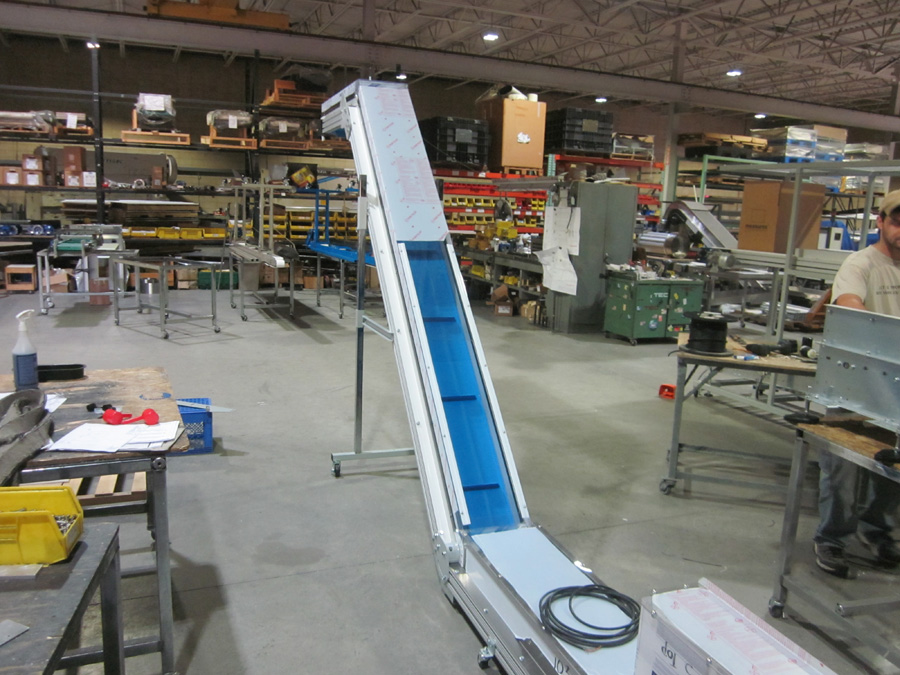

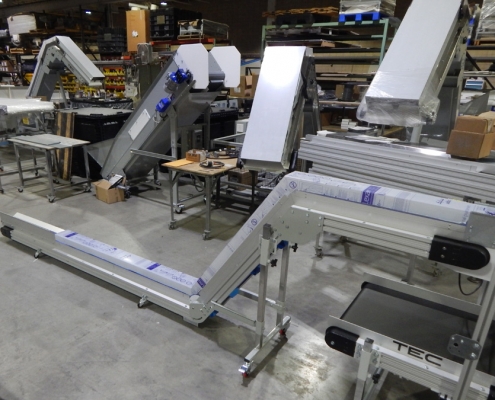

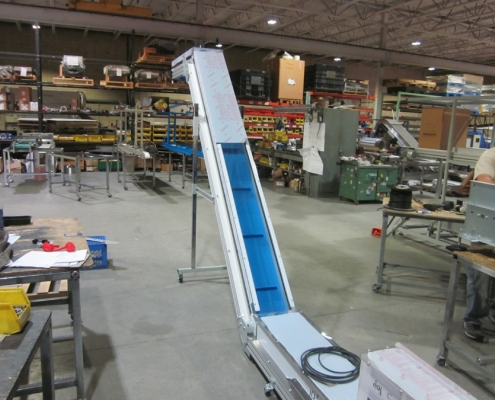

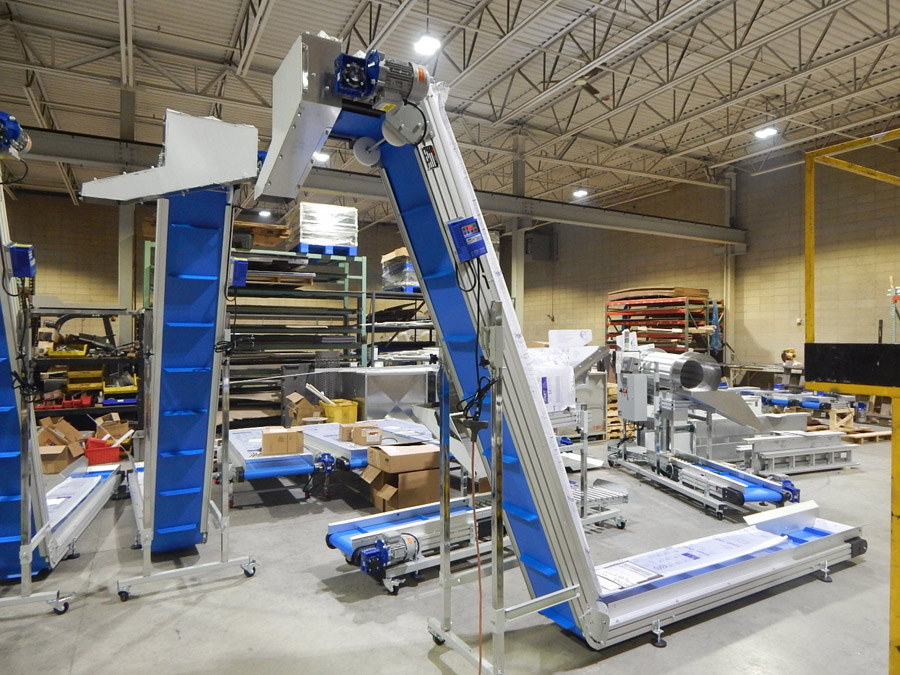

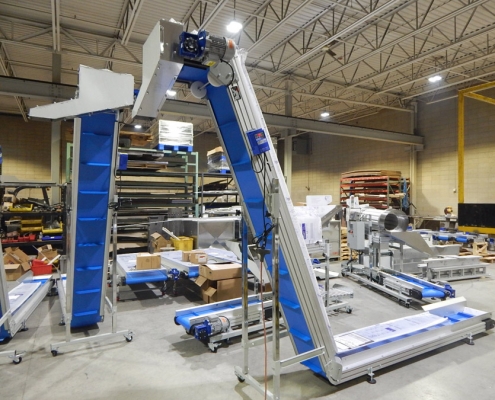

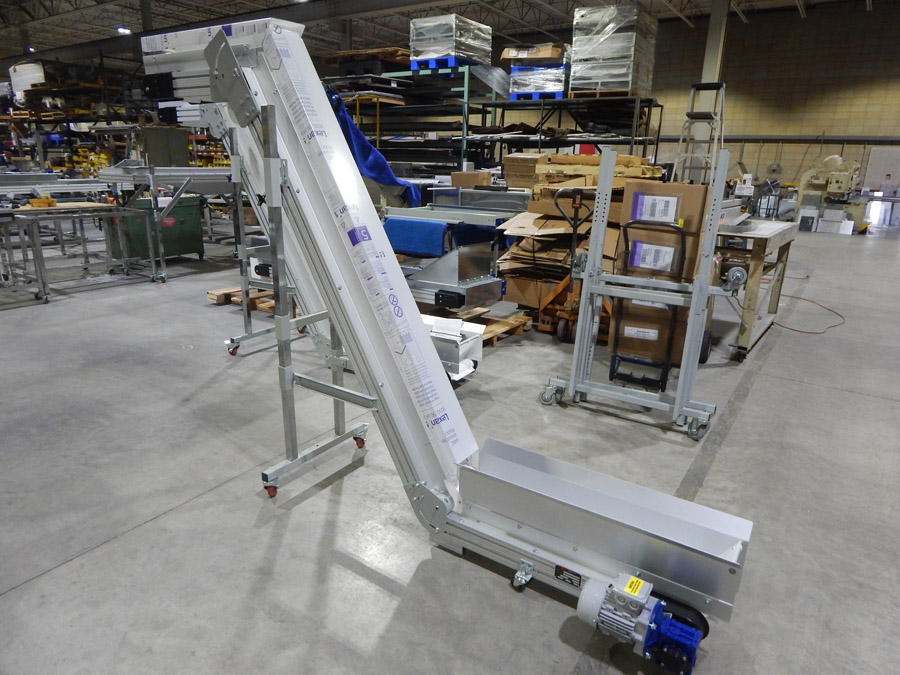

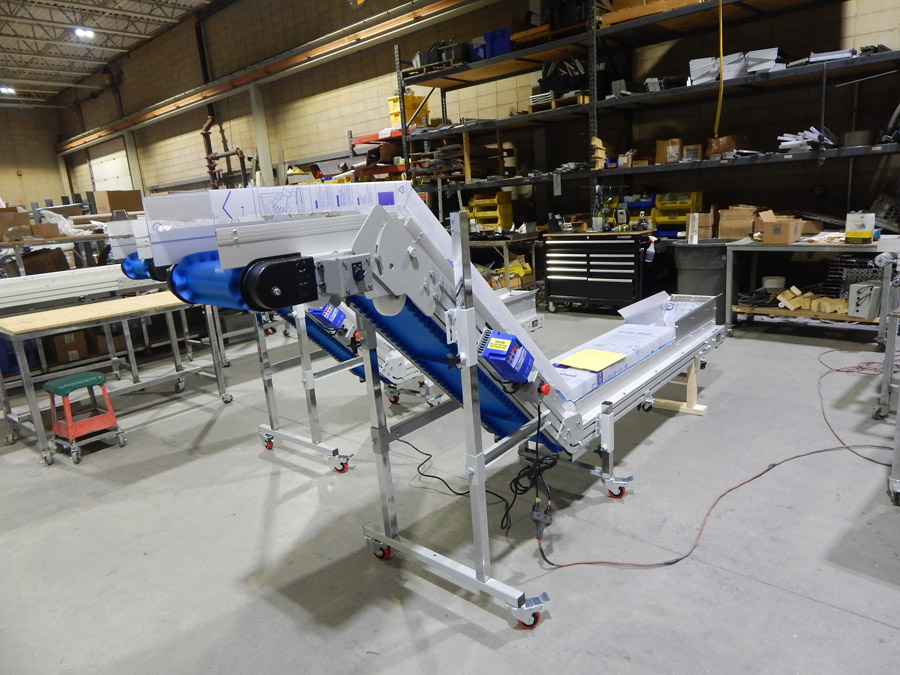

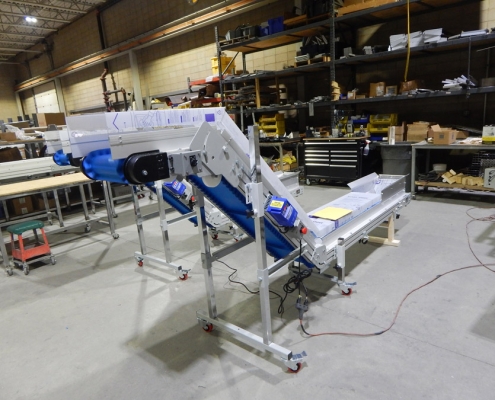

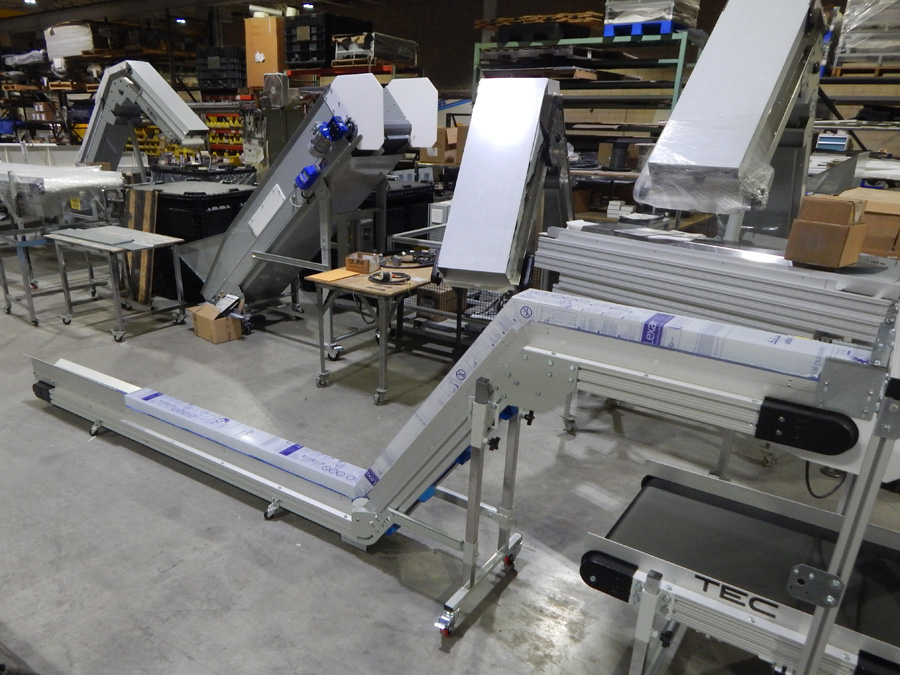

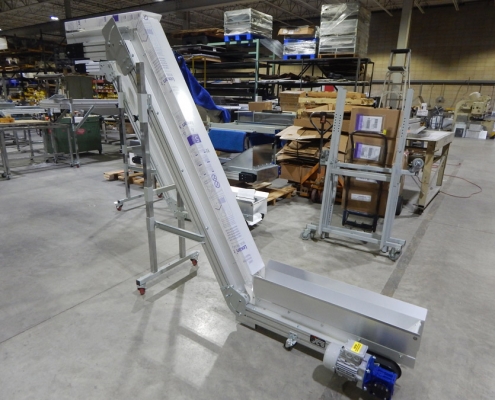

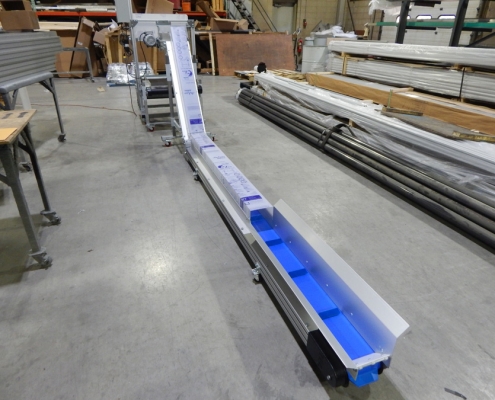

Ultraline Series: Z Shaped

Ultraline Series: Z Shaped

Ultraline Series - Z Conveyor ISO View

Features

  • Extruded and anodized aluminum frame and 2 ½" side rails
  • Full support slider bed
  • Extruded aluminum self cleaning pulleys
  • Unique drive system
  • "V" tracking system
  • Endless monofilament anti-statics belting material - blue standard - white FDA optional
  • ¾" permanently lubricated bearings
  • Belt under side rails ½" each side
  • 115 V/60 Hz/1 phase direct drive motor
  • Manual motor starter with overload protection
  • 8’ long 16-3 power cord
  • Adjustable legs with 3" diameter soft rubber swivel casters with toe locks
  • Totally enclosed drive and pulleys for maximum safety
  • Built for continuous duty use 24 hrs/day, 7 days/wk
  • Pre-wired ready to plug in
  • Belt speed 20 fpm (std.)
  • Quick adjustments no tools required
  • Incline conveyors 1" high cleats (std.)
  • Other options available on request

Fore more information about TEC Engineering’s products or services, please contact us online or call 508-987-0231.
